Description

■ 2220RS

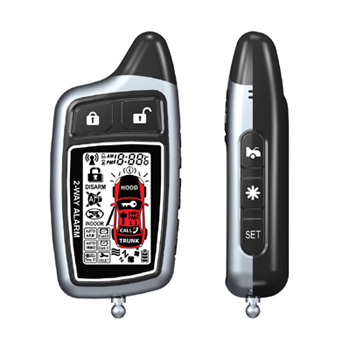

• 2-way LCD display handset with multi-channel pager
• Pager range up to 1000 meters (3300 feets) in open area
• LCD icons display: TX/RX mode, disarm/unlock, arm/lock, mute arm/disarm, light or heavy shocking, sensor bypass, auto arm, auto immobilizer, remote start, periodical start, clock start, temperature start, valet mode, low batter, anti-hijack, trunk/hood/door/ignition triggers, vibration or buzzer alert, parking time countdown, car call…

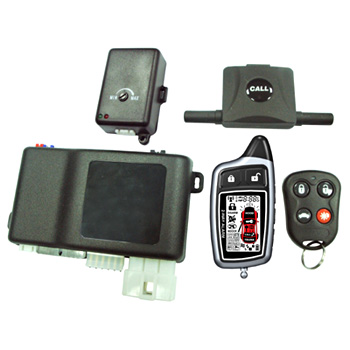

• Including 1-pc 2-way transmitter & 1-pc 1-way transmitter External 2-way transceiver antenna
• External 2-way transceiver antenna

■ 1120RS

• Including 2-pc 1-way transmitter
• External 1-way RF receiver

■ Other Functions:

• Comes with GSM Smartphone port can work with our SM200 GPS/GSM Smartphone tracking & security system to can be remote controlled by Smartphone too, also comes with CANbus port can work with CANbus interface module to link to car CANbus
• Code-hopping, anti-grabber, anti-scanner
• Code-learning & lost transmitter code erase
• Remote engine start
• Daily start
• Periodical start
• Temperature start
• Safety procedure for manual transmission car start
• Gasoline or diesel engine selection
• rpm/voltage/generator/time delay engine start detection
• rpm learning
• Turbo timer
• Keep engine running
• Door, hood/trunk & ignition trigger inputs
• Negative & positive door trigger inputs
• 2-stage shock sensor
• 2-sensor inputs
• Arm with sensor bypass
• Mute arm/disarm
• Refresh icons status
• Car locating
• Status check
• Panic
• Anti-hijack
• Manual arm/disarm without transmitter
• Valet mode by valet switch or by transmitter
• Valet switch or PIN code override
• New PIN code programmable
• False trigger mode
• Siren stop
• Starter disable by external relay
• Disarm/arm outputs
• Ignition lock/unlock and footbrake lock selection
• 4 programmable channel 1/2/3/4 outputs for trunk open, window close, factory pulse arm output, 2nd unlock, factory pulse disarm output, home light output, start2 output…
• Programmable central lock timing, 2 pulse unlock, turbo timer, ignition lock/unlock, footbrake lock, passive arm/lock, auto rearm, siren or horn output, dome light delay, sensor 1/2 delay, anti-hijack on/off, override by valet switch or PIN code, different temp. start, engine warm up timing, start success lamp flash, engine start detection, auto/manual transmission, push-button start, factory setting…
• Build-in starter/IG1/IG2/ACC relays for engine start
• Build-in door lock relays for door lock universal interface
• Build-in relay for light flash indication
• Valet switch & status LED included

(Customer required functions developing are also welcome)
