Description

Key Specifications/Special Features:

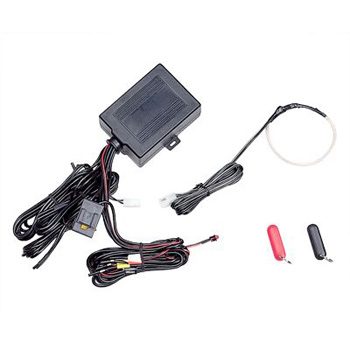

• 312 (two-circuit), 313 (three-circuit), master-tag type
  Transponder immobilizer
  • Available in two or three circuits (12V)
  • One master and one user tags
  • Self-learning: controlled by red master tag
  • Each unit can learn up to four user tags
  • Lost/stolen tag programming out facility
  • Anti-scan
  • 264 code
  • 5-inch to 6-inch tag range
  • 30 seconds passive arming
  • 60-second tag search
  • Flashing status LED
  • 30A per circuit
  • Normally open relay contacts (normally close relay contacts available for special order)
  • 40A sealed relays
  • Fail safe circuits with status memory
  • 36-inch 30A wiring harness
• 322 (two-circuit), 323 (three-circuit) PIN number type
  Transponder immobilizer
• Available in two or three circuit (12V)
• Two user tags
• Self-learning: controlled by PIN number
• Each unit can learn up to five user tags
• Lost/stolen tag progamming out facility
• Anti-scan
• Emergency override
• New PIN number programmable
• 264 code vanants
• 5-inch to 6-inch tag range
• 30-second passive arming
• 60-second tag search
• Flashing status LED
• 30A per circuit
• Normally open relay contacts (normally close relay contacts available for special order)
• 40A sealed relays
• Fail-safe circuits with status memory
• 36-inch 30A wiring harness
